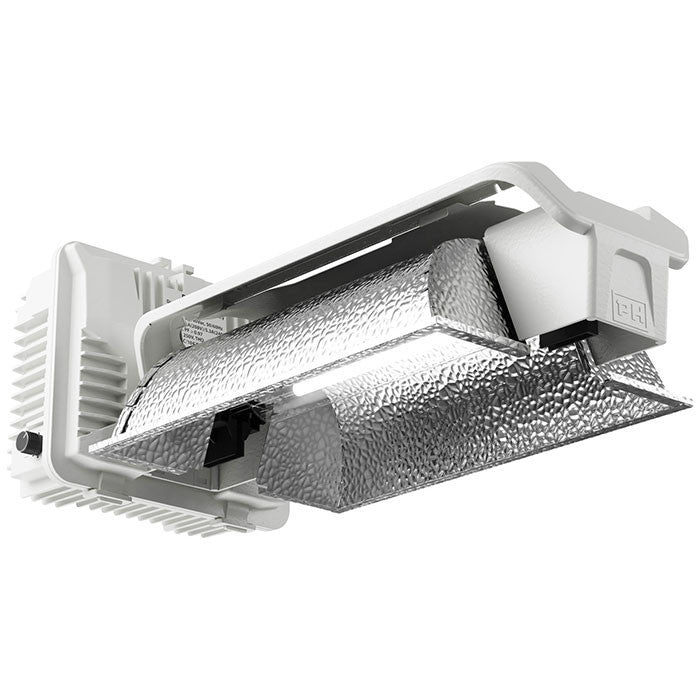

Phantom 60 Series DE enclosed 1000 W fixture with 3 ft bare leads
Phantom 60 Series DE enclosed 1000 W fixture with 3 ft bare leads, second view

Phantom DE 1000W 277-400V Enclosed + 3' Leads Cord

SKU: PHRE1000277
Current Stock: 193
Lead Time: This item ships in 1-2 Business Days
$349.70
MSRP: $384.67
$349.70
— You save $34.97
Quantity: Each
Subtotal: $349.70

Free Returns

Learn More.
Phantom 60 Series DE enclosed 1000 W fixture with 3 ft bare leads, second view

Phantom DE 1000W 277-400V Enclosed + 3' Leads Cord

$384.67 $349.70

Phantom DE 1000W 277-400V Enclosed + 3' Leads Cord

$384.67 $349.70
Quantity: Each
1000 W DE 277-400 V 3 ft bare leads

Overview

Phantom 1000W DE enclosed system, 277-400 V, with a short 3 ft bare-lead cord for fixtures mounted near their power point. The Phantom 60 Series DE Enclosed is a complete 1000 W double-ended HPS fixture for commercial rooms and greenhouses: PHB6024 ballast, enclosed reflector and Phantom DE lamp in one unit, running on 277 to 400 V. The ballast dims from an Autopilot PX2+ controller over RJ12 at 0-11.5 V, offers 600, 660, 750, 825, 1000 and 1150 W settings plus a PX control mode, and passes the dimming signal on to 500+ fixtures. The enclosed reflector spreads light at medium width for even PAR, a ridge vent keeps the lamp at its best working temperature, and Phantom rates the lamp at 2,100 µmol/s. The listing gives coverage of 6 x 6 ft in veg and 5 x 5 ft in flower. Buy Each, 21 Units, Pallet of 42 or 840 Units.

Phantom 1000W DE Features: Phantom 60 Series DE Enclosed 1000W, 277-400V, 3 ft Leads Cord

  • 3 ft bare leads
  • 1000 W DE HPS
  • 277-400 V input
  • PX2+ dimming, RJ12

Phantom PHRE1000277 Specifications

Specification Value
Brand Phantom
Item number PHRE1000277
Wattage 1000 W (also 600, 660, 750, 825, 1150 W)
Input 277-400 V, 50/60 Hz
Current 3.6 A at 277 V
Lamp Phantom DE HPS, 2,100 µmol/s, included
Reflector Enclosed, medium spread
Dimming 0-11.5 V via RJ12, PX2+ controllers
Cord 3 ft bare-lead cord for hard-wiring
Coverage 6 x 6 ft veg, 5 x 5 ft flower
Pack Each, 21 Units, Pallet of 42, 840 Units
Barcode 638104028288

Which Cord Do You Need?

It comes with a short 3 ft cord ending in bare leads for hard-wiring. Choose Each, 21 Units, Pallet of 42 or 840 Units. For an open reflector with the same cord, see the 60 Series DE Open. For any questions about this DE fixture, email us at support@groindoor.com or reach us on chat.

Everything needed to confirm fit is on this page — add it to your cart to see delivered pricing for your address.

Using the Short Lead Cord

With only 3 ft of lead, this version is meant for fixtures that hang close to their power point, such as a junction box on the truss or ceiling grid directly above. That keeps loose cable off the canopy and out of the way of trellis and carts. Phantom recommends a licensed electrician and an electrical engineer for 277-400 V installs, following local code and inspection.

❓ Frequently Asked Questions

3 ft or 10 ft leads?

The 3 ft cord suits fixtures wired close to a junction box; choose 10 ft when the run is longer.

What wattage settings are there?

600, 660, 750, 825, 1000 and 1150 W, plus PX control mode.

Which controllers dim it?

Autopilot PX2+ series lighting controllers, through the RJ12 port at 0-11.5 V.

How much area does it cover?

About 6 x 6 ft in veg and 5 x 5 ft in flower, per the listing.

Are there shipping limits?

Yes. Gro Indoor cannot ship it to AK, HI.

UL Listed No
Lead Time This item ships in 1-2 Business Days
Prop 65 No
EACH - Weight(lb) 17.5
EACH - Height(in) 8.13
EACH - Length(in) 28.3
EACH - Width(in) 15.06
Weight (lb) 17.5
Height (in) 8.13
UPC 638104028288
Width (in) 15.06
Amps 3.6A @277 Volt
Brand Phantom
Exact Watts 1000 Watts
Voltage 277-400 Volt
SKU PHRE1000277
Power Cord(s) Included 277-400 Volt Open Lead Cord
Power Cord Length 3 ft
Shipping Restrictions AK, HI
Warranty 3 Year Ballast - 1 Year Lamp/Reflector
Bulb Type Double Ended High Pressure Sodium
Lighting Type HPS/MH - Double Ended
Bulb(s) Included Yes
Frequency 50/60 Hz
Coverage Area 50/60 Hz
Glass Included No
Est. Electricity Cost /mo 43.2
Bulb Lumens 2,100K
Reflector Type Enclosed
Simple Wrapper No
