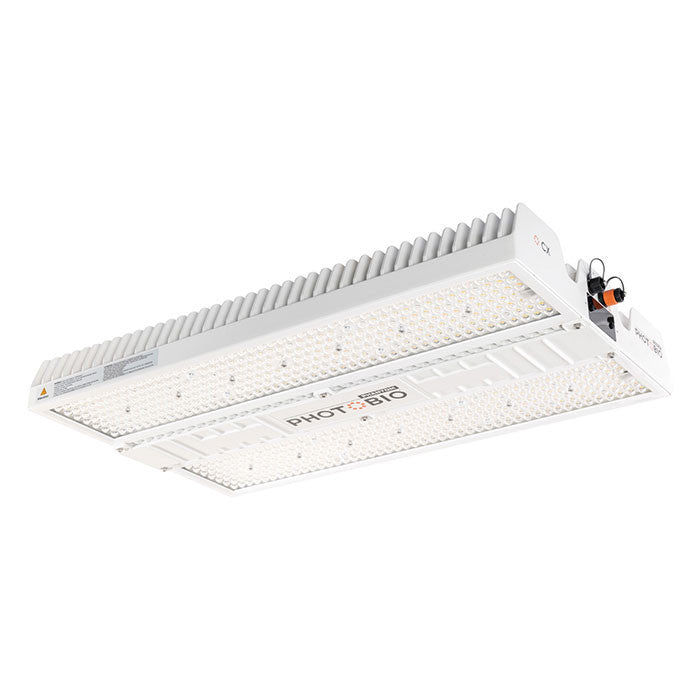

Commercial Grow Lights: the PHOTOBIO CX 2125, an 850 W, 2,125 µmol/s top light, here with open leads. This PHOTOBIO CX 2125 comes with open leads for hard-wiring by an electrician. It is an 850 W LED top light rated at 2,125 µmol/s and 2.5 µmol/J at 277 V, using 608 Osram and Seoul diodes in PHOTOBIO S4 full spectrum, with extra red, far-red and blue. The fixture is about 24 x 14 inches and only about 3 inches deep, passively cooled, IP66 rated for wet locations and runs on 120 to 277 V. It dims over 0-10V, with onboard light-output buttons, and links to an Autopilot PX2 controller. Buy Each, 12 Units, 48 Units or 96 Units.
| Specification | Value |
|---|---|
| Brand | PHOTOBIO |
| Item number | PTB8850LS47 |
| Power | 850 W (845-867 W by voltage) |
| PPF | 2,125 µmol/s at 277 V |
| Efficacy | 2.5 µmol/J at 277 V |
| Spectrum | S4 full spectrum |
| Diodes | 608, Osram and Seoul |
| Input | 120-277 V |
| Rating | IP66, wet location |
| Dimming | 0-10V, onboard buttons |
| Size | About 24 in x 14 in, 3 in deep |
| Power connection | open leads |
| Pack | Each, 12 Units, 48 Units, 96 Units |
This listing has open leads; choose Each, 12 Units, 48 Units or 96 Units. For another power option, see the no-cord version. If you have any questions about this LED grow light, contact us at support@groindoor.com or through chat.
Everything needed to confirm fit is on this page — add it to your cart to see delivered pricing for your address.
Open leads are meant for permanent connection by a licensed electrician to a junction box or busway. Size circuits from the typical current, 3.05 A at 277 V or 3.56 A at 240 V, and follow local electrical code.
PHOTOBIO S4 full spectrum, with extra red, far-red and blue.
A licensed electrician, to a junction box or power distribution per local code.
7.25 A at 120 V, 4.09 A at 208 V, 3.56 A at 240 V and 3.05 A at 277 V (typical).
The fixture, a 10 ft 0-10V control cable, five eye hooks and two C hangers.
| UL Listed | Yes |
|---|---|
| Weight (lb) | 0 |
| Height (in) | 0 |
| Width (in) | 0 |
| Amps | 7.25 Amps @ 120 Volts, 4.09 Amps @ 208 Volts, 3.56 Amps @ 240 Volts, 3.05 Amps @ 277 Volts |
| Brand | PHOTOBIO |
| Exact Watts | 850 Watts |
| SKU | PB-CX |
| Power Cord(s) Included | Yes |
| Power Cord Length | 10 ft. |
| Lighting Type | LED |
| Grow Light Certifications | IP66 Rated, UL Listed, CSA Listed |
| Frequency | 50/60 Hz |
| Coverage Area | 50/60 Hz |
| Est. Electricity Cost /mo | 36.72 |
| LED Fixture Type | Panel |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| PAR Efficiency | 2.5 umol/J |
| Total PPF Output | 2125 µmol/s |
| LED Light Spectrum | Full Spectrum |
| Power Factor | >0.97 |
