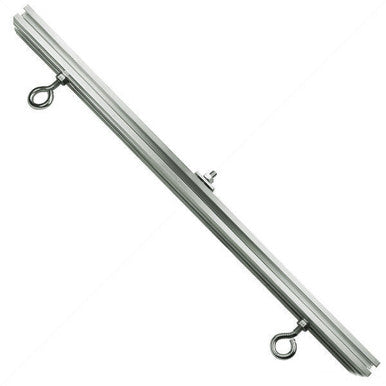

The Robo Stik for Light Rail 3.5, and 4.0 is used for hanging a horizontal reflector from a Light Rail 3.5 and 4.0 perpendicular to the direction of travel. This item is NOT needed when hanging a horizontal reflector parallel to the direction of travel, but many creative uses have been found for them. It is packaged with hardware and instructions in a white box with label tape.
Light Rail 3.5 is rated to 75 lbs
Light Rail 5.0 is rated to 100 lbs
How much weight will LightRail Carrry?
The answer to this is twofold. For LightRail 3.5 and 4.0 let's first talk about the strength of the rail then we'll talk about LightRail Drive Motor that moves your grow light. If only mounted by the mounting holes at the ends of the rail, the rail will begin to deflect when 35 lbs. (16kg) is in the middle of the rail. If all the rails mounting holes are used when mounting the rail first to a board, and then the board to the structure above your garden, it will easily handle 75 lbs.
Next, the LightRail 3.5 or 4.0 Drive Motor can easily move 75 lbs (34kg). However, more weight equals accelerated wear and tear mostly on the Trolley Wheels. LightRail's testing has shown that the Trolley Wheels on a LightRail 3.5 or 4.0 Drive Motor will last between 12 and 16 months moving a load of 35 pounds (16kg). Their Extreme Duty Trolley Wheels have a lifetime warranty at 60 pounds per set of four. Plus they have very low drag co-efficiency so they are the best choice for moving heavy or multiple reflectors
LightRail 5.0 will hold and move 100 lbs (45kgs) per cross arm (limit 3 cross arms) but again, needs to be mounted to a structure properly. Note: The greater the weight, the more frequently trolley wheels will need to be replaced. Trolley wheel kits are available for LightRail 3.5, 4.0 and the older 3.0, but for LightRail 5.0 needs LightRail must be contacted for any serviceable work and they make that easy and with a quick turnaround time.
UL Listed | No |
---|---|
Lead Time | This product ships in 1 Business Day |
Prop 65 | No |
EACH - Weight(lb) | 1.4 |
EACH - Height(in) | 2.13 |
EACH - Length(in) | 25.6 |
EACH - Width(in) | 2.25 |
Total Sold | 0 |
Weight (lb) | 1.4 |
Height (in) | 2 |
UPC | 689001390046 |
Width (in) | 2 |
Brand | Light Rail |
SKU | LR3.5RB |
