Extraordinary performance. Extreme efficiency. Exacting design.

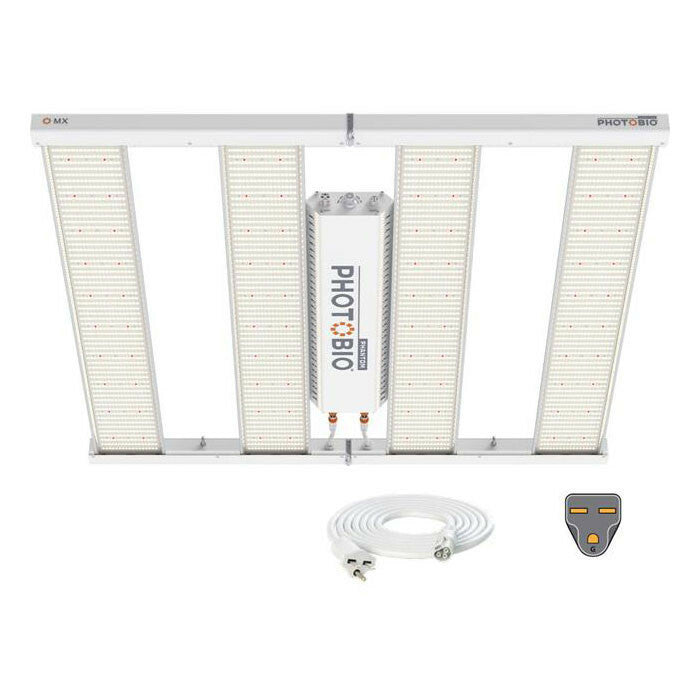

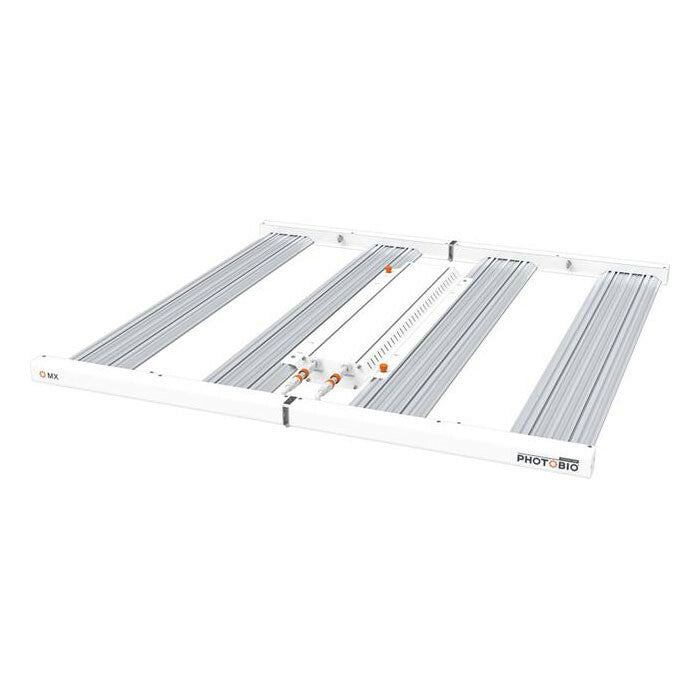

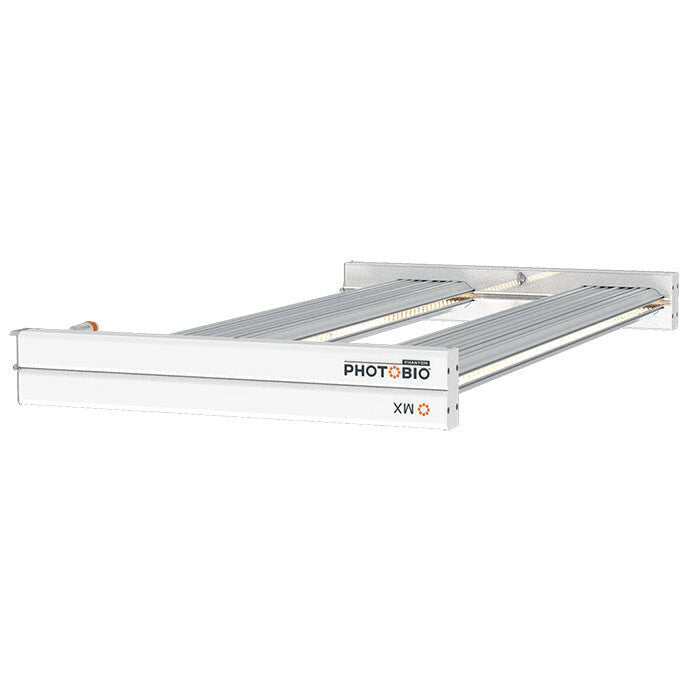

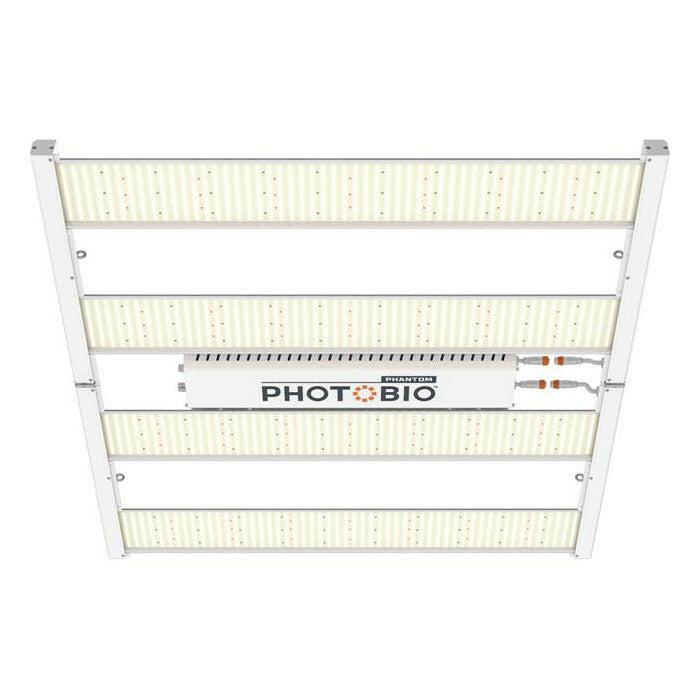

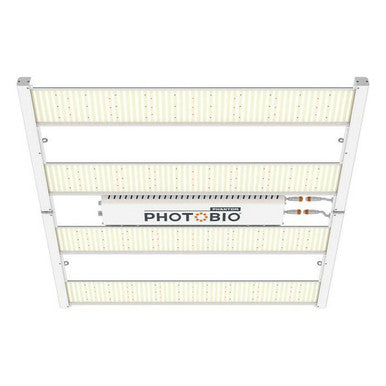

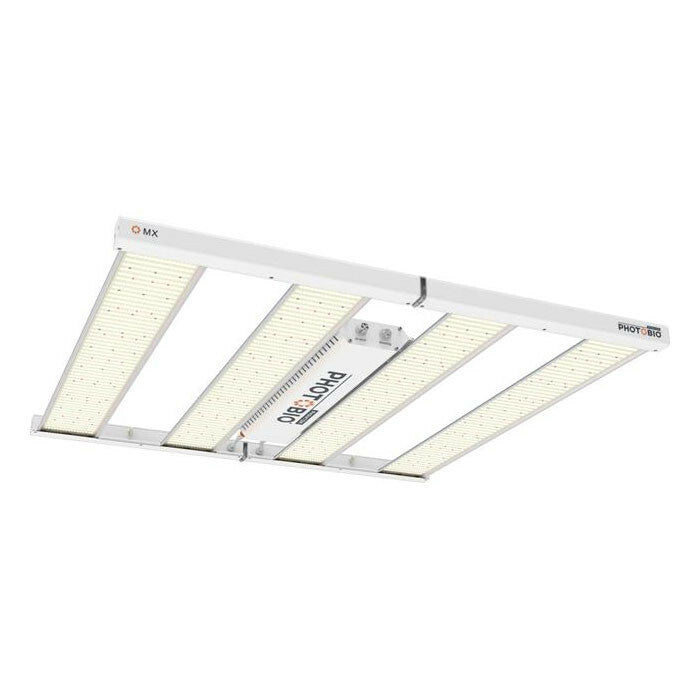

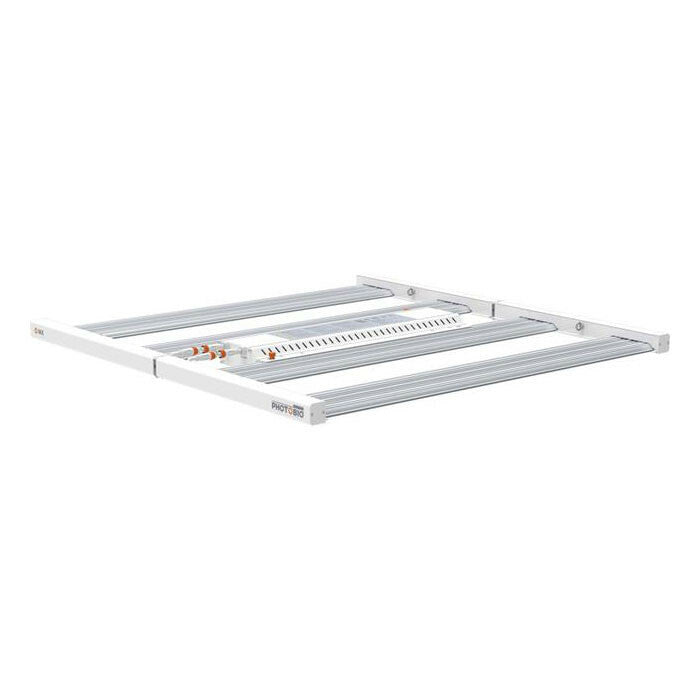

The PHOTOBIO MX changes everything. We took a step back, evaluated all the fixtures on the market, and then set out to do things entirely different. The result is a 680W fixture delivering 15% more light to your canopy, using 35% less power than a 1000W DE fixture. Achieve record-breaking yields while driving down operational cost. The spectrums were developed in a private research laboratory to drive flower yield and elicit market desirable traits in short-day crops.
PHOTOBIO MX Integrated Light Output Control
The PHOTOBIO MX can come with or without the iLOC, the Integrated Light Output Control. The iLOC is an on board dimming knob allows the grower to adjust the photon output intensity to accommodate the various stages of plant growth for optimal photosynthesis activation. With the knob adjusted to 100% using 240 Volts, the MX uses 664 Watts and puts out 1700 μmol/s photon flux (PPF). With the knob adjusted to 40%, the MX uses 270 Watts and puts out 40% of the photon flux. The high efficiency S4 spectrum does not change when using the dimmer knob and still provides ideal red to blue ratio for vigorous growth and maximized flower development.
There are 5 options of Power Cord to choose from. 4 with the iLOC and 1 without the iLOC
- 110/120 Volt with iLOC
- 208/240 Volt with iLOC
- 277 Volt with iLOC
- Open Leads with iLOC
Additional power cords of all voltages are available separately as well.
Features of the PHOTOBIO MX LED Grow Light
- 1700+ µmol/s Photon flux
- 2.55 μmol per joule efficacy
- For fixtures with iLOC
- iLOC Integrated Light Output Control allows manual adjustment of light output
- Settings are 40%-55%-70%-85%-100%-PX Control
- PX Control Setting for the Autopilot PX2 Advanced Lighting Controller
- Driver can be mounted remote
- Robust commercial design keeps LED's running cool to ensure light output and yields consistent
- Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)
- Slim design maximizes vertical growing space with remote capable driver
- 100-277V Driver range
- IP65 wet location rated protection against water and dust
- Strategic diode placement increases uniformity of light delivery
- Includes a voltage specific power cable chosen
- Includes PHOTO LOC signal cable
- DLC listed (H-RR6RGRH) and qualifies for utility rebates, which play a significant role in optimizing the cost effectiveness of a lighting project
PHOTOBIO MX abandons the bar-style concept in favor of a more efficient contiguous circuit board to deliver unparalleled PPFD uniformity to the canopy. Extensive thermal modeling and testing were conducted to ensure diodes remain well below the operating temperature to maintain consistent light output and yields. 0-10V PHOTOLOC Light Output Control allows you to precisely regulate the amount of light delivered to your plant canopy when paired with the available Autopilot PX Series controller.
PHOTOBIO MX's design is multilayer rack-centric, providing the ability to double or triple your canopy square footage within the footprint of your existing structure. The driver is mounted below the fixture to maximize vertical grow space and has the ability to be remotely mounted.
PHOTOBIO MX is designed for the serious horticultural professional looking to increase business sustainability by reducing power consumption while simultaneously improving crop performance and yield. The PHOTOBIOMX is also a qualified product listed with DLC, which makes the fixture eligible for energy rebates for futher cost savings while also saving significant energy while optimizing plant growth and health.
Provides highly efficient full spectrum with a healthy red-to-blue ratio to drive photosynthesis. Light energy between 500599nm, previously thought wasted, penetrates deeper into the plant canopy promoting photomorphogenic responses. High color rendering white" light aids to rapidly identify potential threats to your crop and provides superior working conditions and safety for personnel. Ideal for both flowering and vegetative production.
Photosynthetic Photon Intensity Distribution
LEDs are designed to emit light in a symmetrical 180° arc. That means the light energy is pushed out in virtually all directions at once, similar to if you were to blow up a balloon. The optics of the PHOTOBIO MX LED focuses the light energy within the angle seen below. This means that more energy reaches the plants during the life of the fixture, which is all that really matters. This angle helps to spread out the pinpoint intensity that plague most LEDs and some traditional lights.
Autopilot PX2 Digital Lighting controller
Centralized control of up to 80 PHOTOBIO fixtures. Provides dual-zone photoperiod timing, photosynthetic photon flux scheduling, temperature-based auto-dimming, high temp shutdown, sunrise/sunset simulation, with built-in battery backup.
Two dedicated temperature sensors, one for each zone These sensors provide real-time data for automated temperature-based dimming, as well as a high-temperature shutdown feature that protects your garden. The PX2 eliminates inrush current and replaces traditional lighting contactors, reducing infrastructure investment.
Specification for the PHOTOBIO MX LED Grow Light
||S4 Full Spectrum
||44.09" x 43.31" x 2.2"
||47.5 lb / 21.54 kg
|Included Power Cord
||Choose Desired Voltage
|Power Cord Length
Voltage & Amperage
