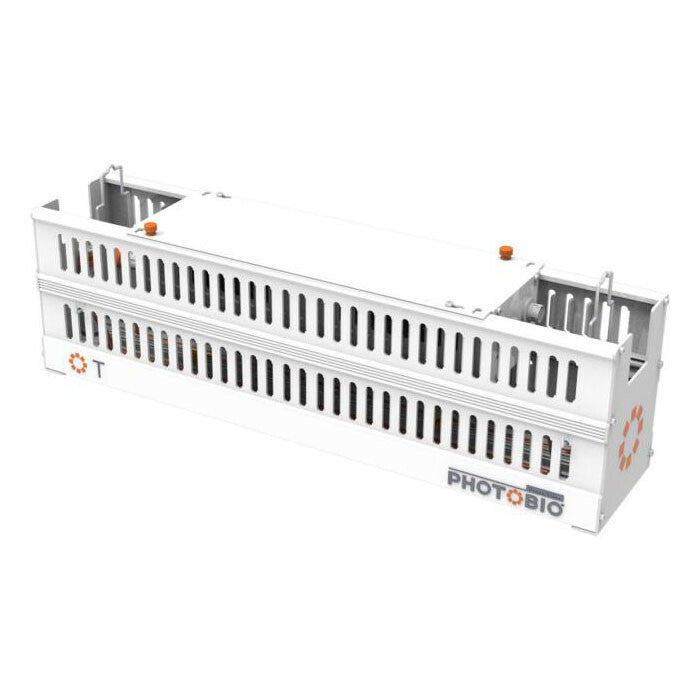

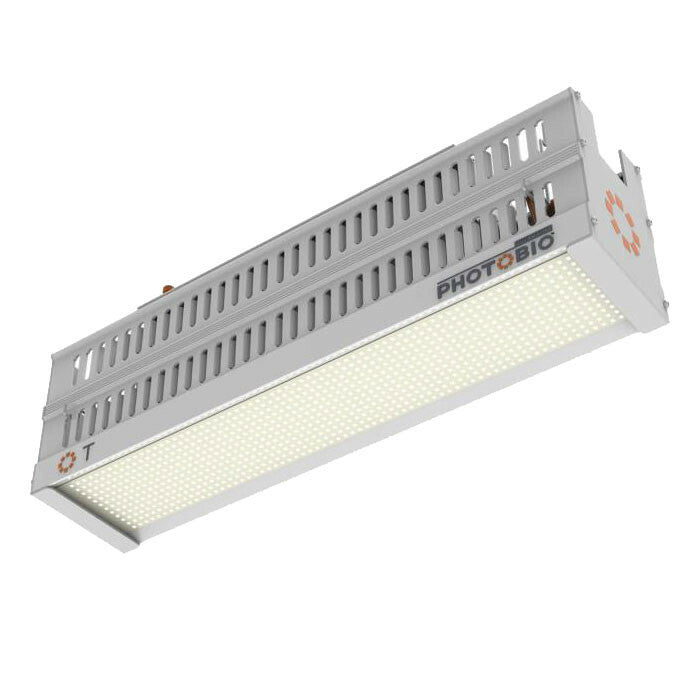

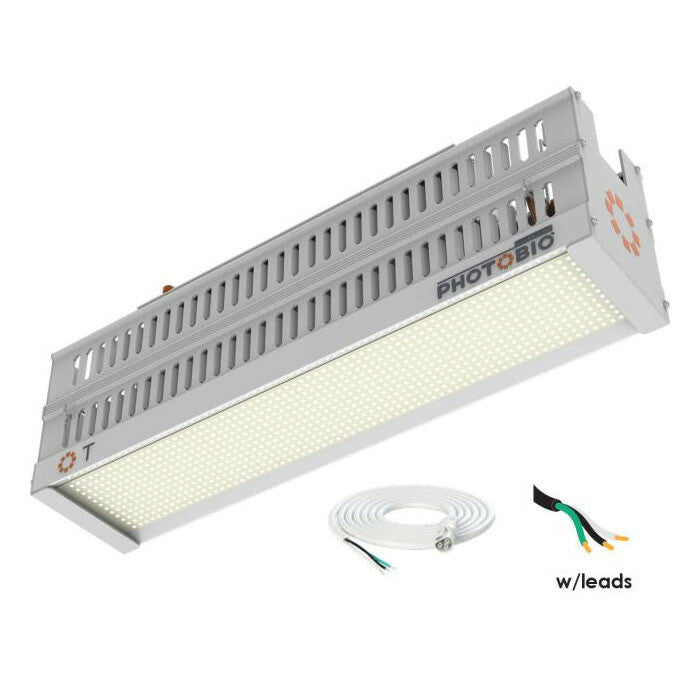

PHOTOBIO T 330 Watt S4 Full Spectrum LED Grow Light, Leads Cord

A Compact Top Light for Green House & Indoor Applications

PHOTOBIO T high efficiency LED top light is designed for greenhouse and indoor applications. The slim design minimizes sun interference while providing greater access to the plant canopy. The ultra-effective commercial design utilizes a closed loop heat pipe cooling system to rapidly wick heat from diodes, providing superior heat dissipation and longevity. The high efficiency S4 spectrum provides ideal conditions for both human and plant health to deliver better working conditions and consistent crop quality. This fixture allows horticulture professionals increased performance and yields while maximizing ROI.

This LED Light comes in 4 options based on your voltage requirements. Choose your Desired Power Cord from the dropdown at the top. The power cords are 10 ft. long

• 120 Volt
• 208/240 Volt
• 277 Volt
• Open Leads

Additional power cords of all voltages are available separately as well.

Features of the PHOTOBIO T 330 Watt

• 858 umol/s Photon Flux @ 277V
• 2.6 µmol/J Efficacy @ 277V
• Ideal for sole source indoor and supplemental greenhouse applications

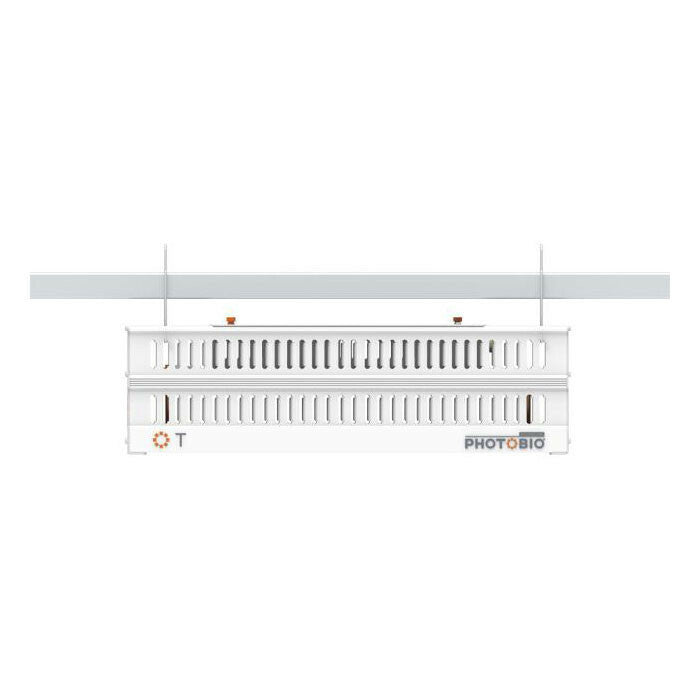

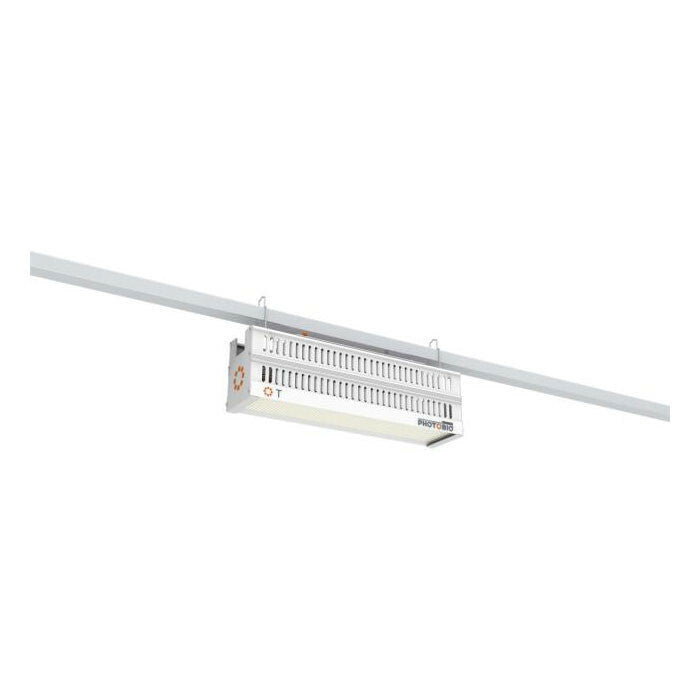

• Thin linear top light design minimizes sun interference in greenhouses while providing better canopy access when applied indoors
• Highly effective heat pipe cooling system provides superior heat dissipation
• Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)

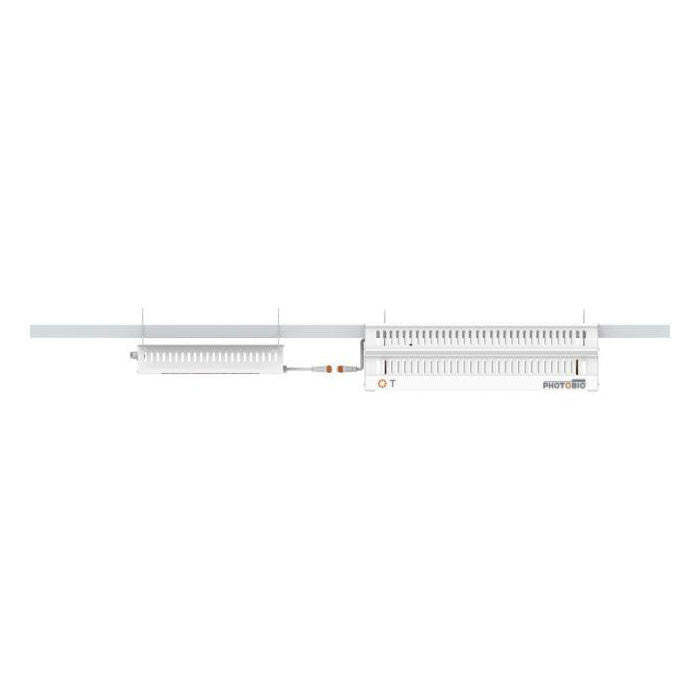

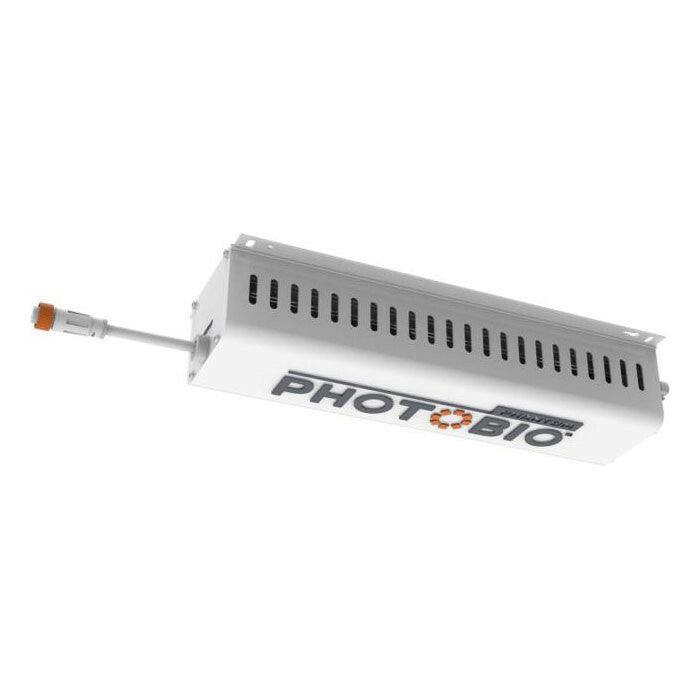

• Driver can be mounted remote
• IP65 wet location rated protection against water and dust
• 100-277V Driver range

S4 Spectrum

Provides highly efficient full spectrum with a healthy red-to-blue ratio to drive photosynthesis. Light energy between 500599nm, previously thought wasted, penetrates deeper into the plant canopy promoting photomorphogenic responses. High color rendering “white" light aids to rapidly identify potential threats to your crop and provides superior working conditions and safety for personnel. Ideal for both flowering and vegetative production.

Photosynthetic Photon Intensity Distribution

LEDs are designed to emit light in a symmetrical 180 arc. That means the light energy is pushed out in virtually all directions at once, similar to if you were to blow up a balloon. The optics of the PHOTOBIO MX LED focuses the light energy within the angle seen below. This means that more energy reaches the plants during the life the of the fixture, which is all that really matters. This angle helps to spread out the pin point intensity that plague most LEDs and some traditional lights.

Autopilot PX2 Digital Lighting controller

Centralized control of up to 80 PHOTOBIO fixtures. Provides dual zone photoperiod timing, photosynthetic photon flux scheduling, temperature based auto-dimming, high temp shutdown, sunrise/sunset simulation, with built in battery backup.

Two dedicated temperature sensors, one for each zone These sensors provide real-time data for automated temperature-based dimming, as well as a high temperature shutdown feature that protects your garden. The PX2 eliminates inrush current and replaces traditional lighting contactors, reducing infrastructure investment.

Specification for the PHOTOBIO T 330 Watt

Voltage & Amperage
