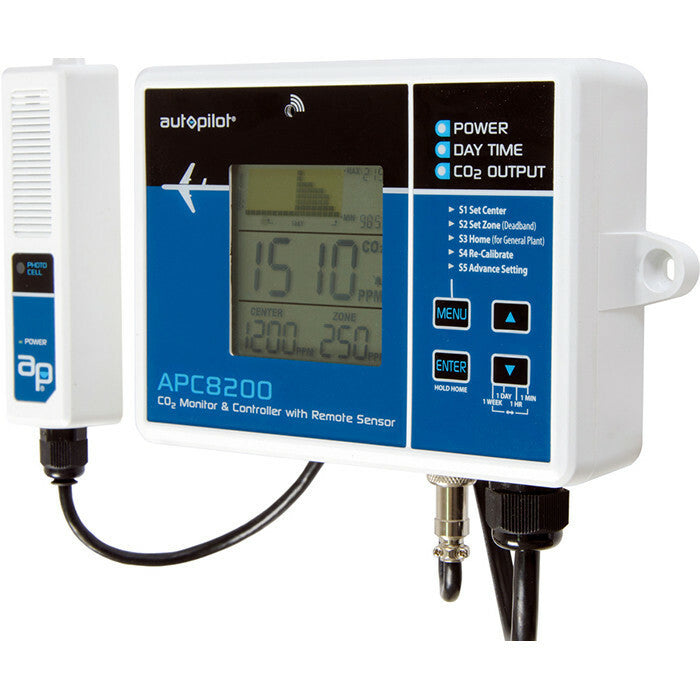

Autopilot APC8200 CO2 controller with remote sensor

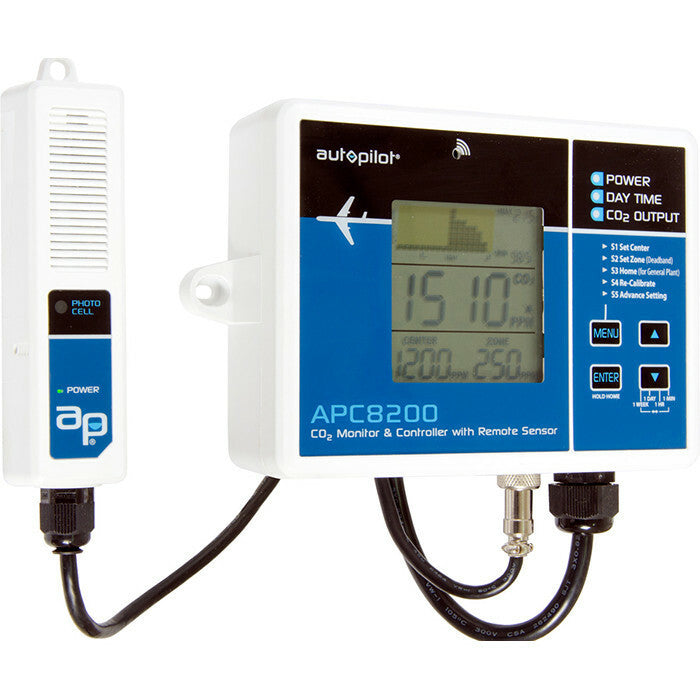

Autopilot APC8200 CO2 controller with remote sensor, second view

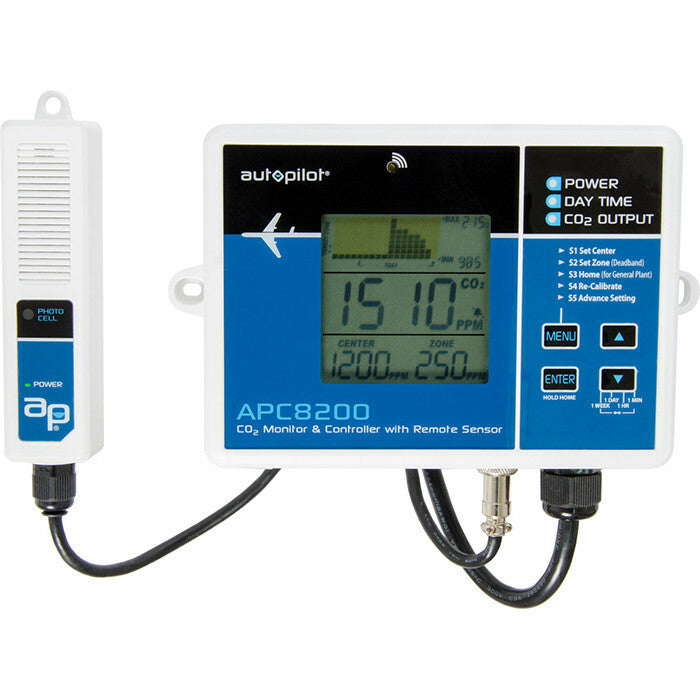

Autopilot APC8200 CO2 controller with remote sensor, detail
Autopilot APC8200 CO2 controller with remote sensor, photo 4

Autopilot CO2 Monitor & Controller w/15' Remote Sensor

SKU: APC8200
Current Stock: 128
Lead Time: This product ships in 1 Business Day
$256.24
MSRP: $294.67
$256.24
— You save $38.43
Subtotal: $256.24

Free Returns

Learn More.
Autopilot APC8200 CO2 controller with remote sensor, photo 4

Autopilot CO2 Monitor & Controller w/15' Remote Sensor

$294.67 $256.24

Autopilot CO2 Monitor & Controller w/15' Remote Sensor

$294.67 $256.24
0-5000 ppm NDIR 15 ft sensor

Overview

CO2 controller with a built-in logger: the Autopilot APC8200 reads 0 to 5000 ppm on a remote NDIR sensor and switches CO2 by set point and dead band. The Autopilot APC8200 is a CO2 controller and data logger with a remote NDIR sensor on a 15 ft cable. You set a center value and a zone (dead band), and the piggyback outlet switches a CO2 generator or regulator on below the zone and off above it. A photocell on the sensor shuts CO2 off when the lights go out. The screen shows live CO2, the set values and a trend chart you can zoom from one minute to one week, with max and min readings. It runs on 100 to 240 VAC.

CO2 Controller Features: Autopilot APC8200 CO2 Monitor and Controller, 15 ft Sensor

  • Trend chart logging
  • 0-5000 ppm NDIR sensor
  • 15 ft sensor cable
  • Day/night photocell

Autopilot APC8200 Specifications

Specification Value
Brand Autopilot
Item number APC8200
Range 0-5000 ppm
Accuracy ±50 ppm or ±5% to 3000 ppm; ±7% above
Sensor 2-channel low-drift NDIR, remote
Cable 15 ft
Night shut-off Photocell on sensor
Trend chart 1 minute to 1 week
Default settings 1200 ppm center, 400 ppm zone
Power 100-240 VAC
Operating range 32-122 F, 0-95% RH non-condensing
Pack Each
Barcode 638104020701

Will It Fit Your Room?

One unit controls one room through a single piggyback outlet. For a spare sensor, see the APC8200 replacement sensor. If you have any questions about this controller, contact us at support@groindoor.com or through chat.

Everything needed to confirm fit is on this page — add it to your cart to see delivered pricing for your address.

Placing the Sensor

Mount the sensor at canopy height, away from the CO2 outlet, fans blowing straight at it and any water spray, so it reads the air around the plants. The 15 ft cable lets the controller sit near the door while the sensor stays in the room. Make sure the photocell can see the grow lights, or the unit will treat the room as dark.

❓ Frequently Asked Questions

What default settings does it use?

The Home preset sets a 1200 ppm center and a 400 ppm zone.

How does the zone setting work?

It sets a band around the center value: with a 1200 ppm center and 400 ppm zone, CO2 turns on below 1000 ppm and off above 1400 ppm.

Does it shut CO2 off at night?

Yes; the photocell on the sensor turns the output off when the room goes dark.

How accurate is it?

Within 50 ppm or 5% of reading, whichever is greater, from 0 to 3000 ppm; within 7% above that.

Autopilot Documents

UL Listed No
Lead Time This product ships in 1 Business Day
Prop 65 No
EACH - Weight(lb) 2.3
EACH - Height(in) 3.94
EACH - Length(in) 9.65
EACH - Width(in) 7.48
Weight (lb) 2.3
Height (in) 3.94
UPC 638104020701
Width (in) 7.48
Brand Autopilot
Voltage AC 100 ~ 240 VAC
SKU APC8200
CO2 Enrichment CO2 Controllers, CO2 Monitors
Warranty 3 Year
Has Photocell Yes
Number of Zones Single Zone
CO2 Sensor Type Remote CO2 Sensor
CO2 Function 0-5000 ppm
